Scamont Duplex PD FXG

Double Acting Reciprocating Piston Pump

The Scamont FXG is a versatile slurry pump that has a wide universe of applications by virtue of its compact design and low power requirements, whilst still delivering impressive flow rates over a range of pressure duties.

Positive Displacement Slurry Pumps ideally suited to development phase and shaft bottom applications.

MOBILE | SIMPLE MAINTENANCE | CUSTOMISED SOLUTIONS

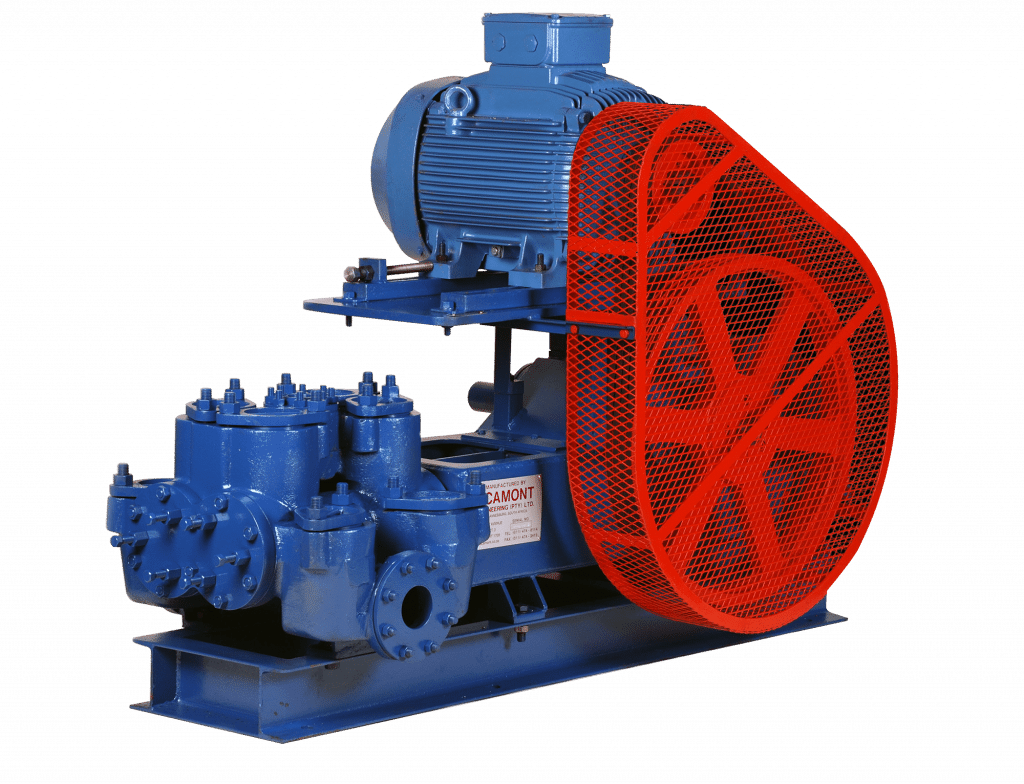

Scamont FXG Duplex Positive Displacement Slurry Pump

Positive Displacement Slurry Pumps ideally suited to development phase and shaft bottom applications

The Scamont FXG pump is a smaller class of pump that operates on the basis of double action technology within the fluid end.

This pump is ideally suited for applications that require less volume and lower pressures. The Scamont FXG is firmly established as the pump of choice in the early stages of mining development projects when space and mobility are key requirements. The FXG is also widely used on drilling rigs.

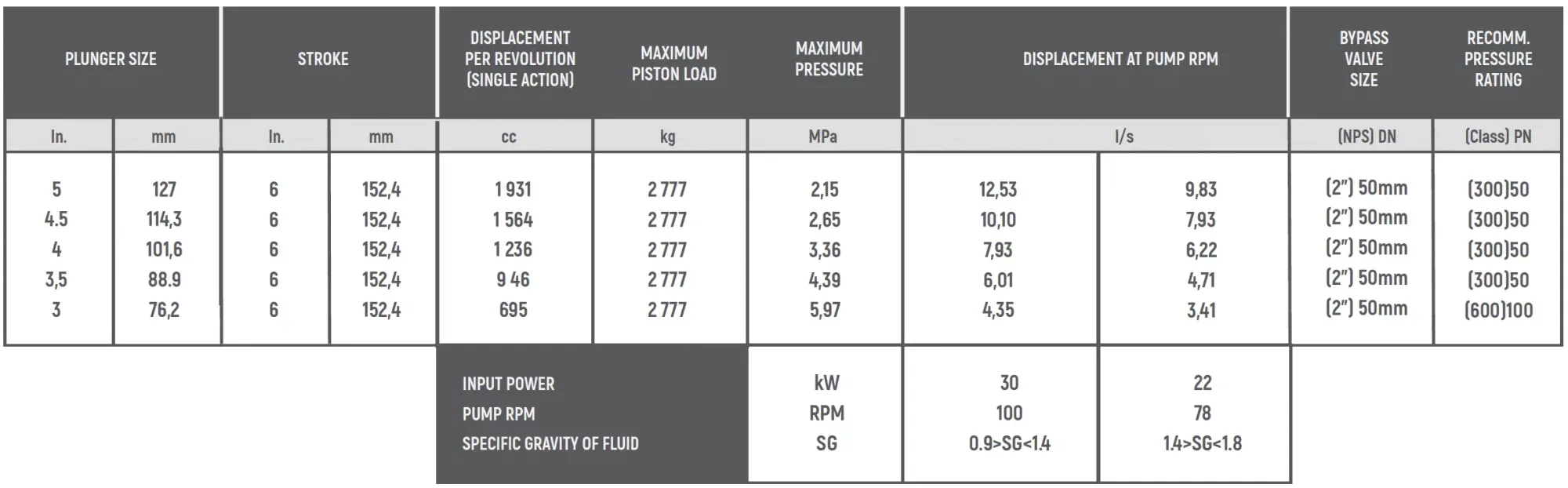

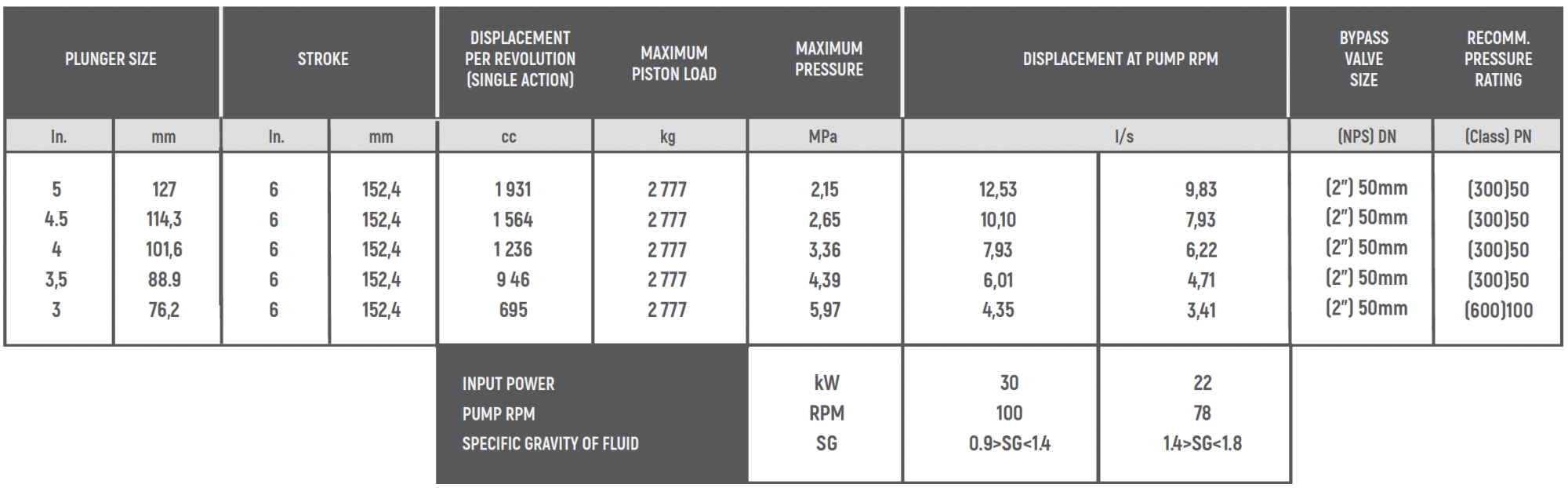

Specifications

Download brochure for further
information and specifications.

Pump Configuration
Displacement (l/s)
Max Pressure (MPa)
FXG 3″
3.42
5.78
FXG 3.5″
4.72
4.19
FXG 4″
6.23
3.17
FXG 4.5″
7.89
2.50
FXG 5″
9.84
2.00
